Lindcott Armory Pistol · Not SAAMI standardized
.22 TCM
Filipino-developed necked-down 9mm cartridge that fires a .22-caliber bullet at nearly 2,000 fps from a 1911-style pistol.
- Caliber
- 0.224″ · 5.69 mm
- Introduced
- 2012
- Case
- Rimless
- Parent
- .223 Remington
- Primary use
- Self Defense, Target
- Status
- Active
- Introduced
- 2012
- Type
- Pistol
- Origin
- Philippines
- Inventor
- Fred Craig / Armscor
- Manufacturer
- Armscor / Rock Island Armory
- Standard
- Not SAAMI standardized
- Status
- Active
- Availability
- Limited
- Case capacity
- 12.9 gr H₂O
- Twist (typical)
- 1:16
- Primer
- Small Pistol
- Case type
- Rimless
- Max pressure
- 40,000 psi
- Eff. range
- 75 yd
- Max range
- 200 yd
- Recoil
- 4–6 ft·lb
- Subsonic
- Capable
Ballistics
- By real loads
- 2,000–2,800 fps · 78 loads
- Parent case
- .223 Remington
Representative trajectory — modeled from a single velocity input (no published BC for this cartridge yet).
Performance
Buy links open .22 TCM ammunition at Rivertown Munitions.

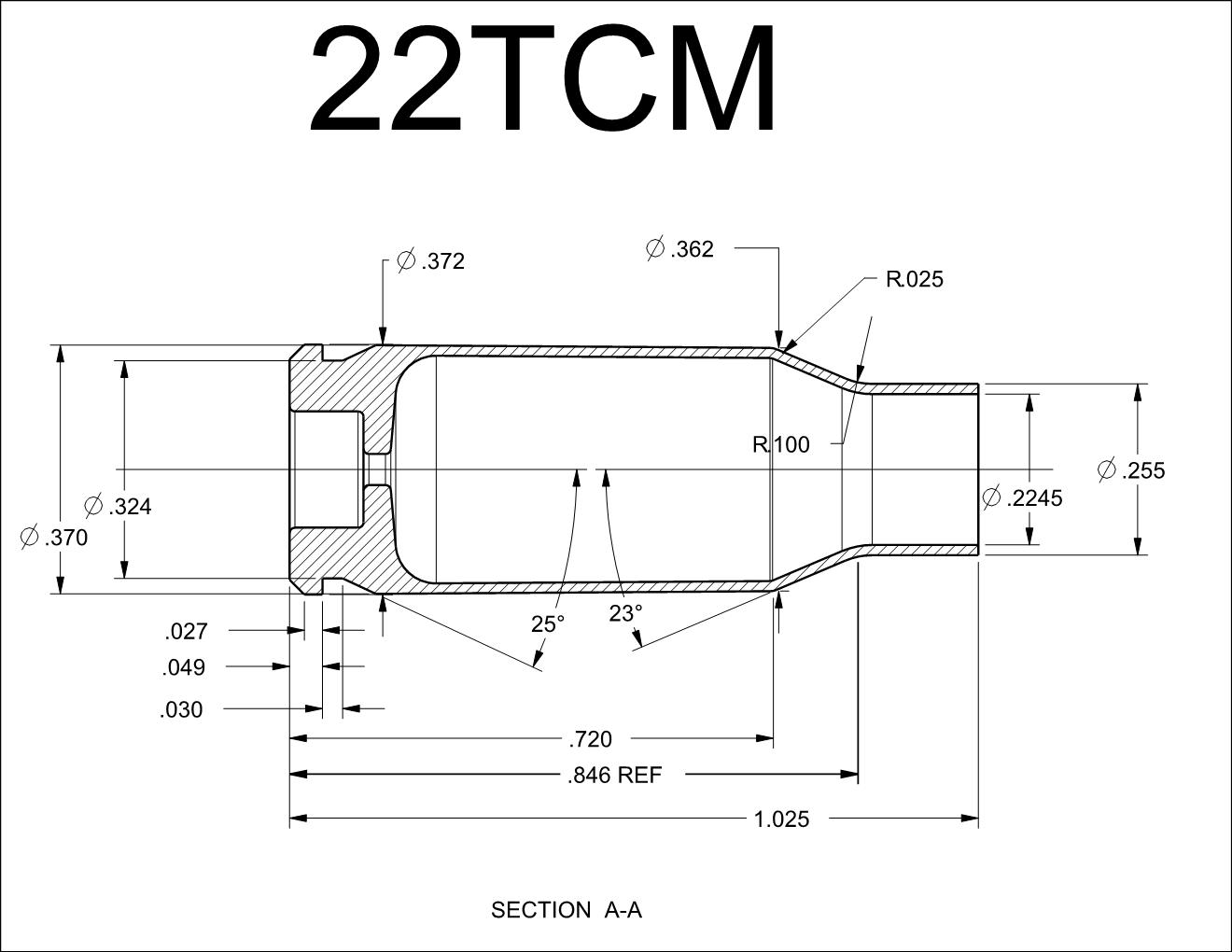

Dimensionscase measurements · scale drawing · size vs familiar rounds
Case dimensions — the scale drawing at the top of the page is built from these.
SAAMI · approximate| Measure | mm | in | ✓ |
|---|---|---|---|
| Bullet ⌀ | 5.69 | 0.224 | · |
| Neck ⌀ | 6.48 | 0.255 | · |
| Shoulder ⌀ | 9.20 | 0.362 | · |
| Shoulder angle | — | — | |
| Base ⌀ | 9.55 | 0.376 | · |
| Rim ⌀ | 9.60 | 0.378 | ~ |
| Belt ⌀ | n/a | ||
| Rim thickness | 1.14 | 0.045 | ~ |
| Neck length | — | — | |
| Case length | 25.96 | 1.022 | · |
| Overall length | 32.13 | 1.265 | · |
Size vs familiar rounds
Drawn at true 1:1 — every case is accurate relative to the others. Absolute size depends on your screen's pixel density, so measuring one against a real ruler may be off. .22 TCM is highlighted below.
Missing a dimension for .22 TCM? Some case measurements aren't in a published SAAMI/CIP drawing yet. Have a factory or reamer print? Send it → — verified hard-to-find data earns a free Lindcott sticker.
Factory loads
In production — 78 active loads across 35 brands. Top 15 shown · see all 78 →.
| Brand | Load | Grain | Bullet | FPS | ft·lb | BC |
|---|---|---|---|---|---|---|
| HSM Ammunition | Sport | 40 | FMJ | 2,800 | 696 | — |
| Armscor | Hollow Point | 40 | Hollow Point | 2,800 | 696 | — |
| Armscor | JHP | 40 | Jacketed Hollow Point | 2,800 | 696 | — |
| Black Hills | Match | 40 | Hollow Point BT | 2,800 | 696 | — |
| Wilson Combat | Match | 40 | Hollow Point | 2,750 | 672 | — |
| Liberty Defense | Civil Defense | 45 | Hollow Point | 2,650 | 702 | — |
| Rock Island Armory | JHP Factory Load | 40 | JHP | 2,100 | 392 | — |
| RIA | Match | 40 | FMJ | 2,100 | 392 | — |
| Armscor | Performance | 40 | JHP | 2,100 | 392 | — |
| Armscor | JHP Hollow Point | 40 | JHP | 2,100 | 392 | — |
| Federal | HP American Eagle | 40 | HP | 2,100 | 392 | — |
| Armscor | FMJ | 40 | FMJ | 2,100 | 392 | — |
| Federal | Premium | 40 | JHP | 2,050 | 373 | — |
| DoubleTap | Defense | 45 | JHP | 2,050 | 420 | — |
| Rock Island Armory | Standard | 40 | JHP | 2,000 | 355 | — |
Velocities are manufacturer-stated (test-barrel). Discontinued loads dimmed.
Reloading costestimate cost per round vs factory
Estimate your cost per round and how it compares to factory. Inputs are yours — nothing is stored.
Cost estimate only — not load data. Charge weight is your input; follow published manuals for safe charges.
Firearms chambered in .22 TCM
12 models in the database chamber .22 TCM. Browse all →
Lineage
Connected reference
History
Developed by Fred Craig and Armscor (Philippines) around 2010, introduced commercially in 2012. The .22 TCM uses a necked-down 9mm Luger case to fire a .22-caliber bullet at high velocity. The Rock Island Armory 1911 chambered for it includes a spare 9mm barrel, allowing the owner to switch between calibers with just a barrel swap. The TCM9R variant uses a shorter case and fires from standard 9mm magazines without modification. Gaining traction in the Philippines and among US 1911 enthusiasts.
FAQs
- What twist rate does .22 TCM use?
- .22 TCM typically uses a 1:16 twist rate.
- What bullet diameter is .22 TCM?
- .22 TCM uses a 0.224″ (5.69 mm) diameter bullet.
- Is .22 TCM still in production?
- .22 TCM is active; typical availability is limited.
- What is .22 TCM used for?
- .22 TCM is primarily used for self defense, target.
- What is .22 TCM based on?
- .22 TCM is derived from the 9mm Luger (modified) case.
Sources & provenance
- StandardSAAMI — SAAMI cartridge & chamber drawing — .22 TCMarchived
- StandardSAAMI — ANSI/SAAMI Z299 — Cartridge & Chamber Drawingsarchived
- SecondaryWikipedia — .22 TCM (case genealogy + 9R subsection) · parent_cartridge
- SecondaryAmerican Rifleman (NRA) — Tested: The .22 TCM Cartridge · parent_cartridge
Data & sources. Specs compiled from the Lindcott Armory reference; availability counted from 78 live factory loads; the trajectory is modeled (point-mass), not measured. See methodology. Spotted an error? Report it →
